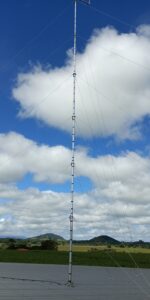

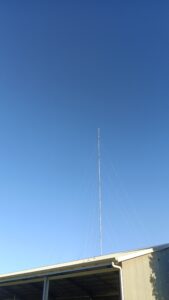

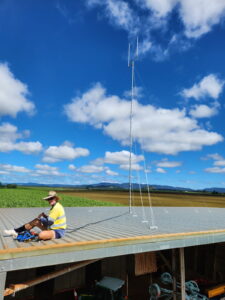

The NBS-2685 is our 5-section 2.0m packed to 8.6m extended telescopic mast. The telescopic design of the NBS-2685 allows for reduced storage in a room or vehicle. Accessories for permanent or temporary installation/utilisation are available separately, please contact us for more information.

Australian Owned & Manufactured Australian owned & manufactured for 50+ years.
In-house Support Experienced, knowledgeable in-house technical support
Customisation Available Customisation of finish, mounting and equipment fixings available
ISO Quality Certified QA Accredited ISO 9001 / ISO 14001 / ISO 45001


Have a question about a particular product on offer? Submit your enquiry below:

Your Name(Required)



Extended Height

8.6 metres / 28.22′

Retracted Height

1.955 metres / 6.41′


Clear anodised aluminium telescopic sections with section stop guides and 4 x passivated D-locking clip

No. of Sections


Weight – Excluding D-clips

10.0 kg / 22.05 lbs

Wind Load Rating – Maximum

160 kph / 99 mph – with each section guy wire supported

Top Section Load Rating

11.0 kg / 24.25 lbs

Maximum Surface Area


Base Section Dimensions

Outside diameter: 68mm / 2.67″

2nd Section Dimensions

Outside diameter: 61mm / 2.40″

3rd Section Dimensions

Outside diameter: 55mm / 2.16″

4th Section Dimensions

Outside diameter: 50mm / 1.96″

Top Section Dimensions

Outside diameter: 45mm / 1.77″

Supplied Accessories

4 x gold passivated section locking D-clips

Suitable Accessories
order separate

– NBS-BS68 – flat ground/roof mount
– NBS-68WStand – drive-on under-wheel mount base
– NBS-68TBMount – tow-ball socket mount base
– NBS-AGR series – Anodised aluminium guy rings – suits sections
– NBS-GR series – 8PLT army green guy rope 5/10/15/20/25 metres
– NBS-GW series – 304 stainless steel guy wire 5/10/15/20/25 metres

Delivered Packaging

2.1 metre cardboard box with internal packing – 100% recyclable.

Stock Status

In manufacture – please allow 15 working days

NBS-2685 Technical Data Sheet

NBS-2685 Guy Wire Configuration
